Tutorial - How to implement a plugin for SQL language support

How to implement a custom plugin for Dirigible, which brings custom execution engine for a custom development language? Hmmm ... why at all you would need this?

In general you do not. You can rely on the standard JavaScript, supported by default as a primary language for services in Dirigible. If you prefer Java you are still in the supported default options. But, what if you want to use your preferred language like Ruby, Groovy, Pyton, Scala and many other JVM and non-JVM modern languages? The good news - it's not so difficult. In this tutorial we will give you the major steps and directions, which can guide you throughout such integrations.

Let's take something simple e.g. SQL script. The engine, which executes this language is the underlying RDBMS itself, but from Dirigible's point of view the database is abstracted via JDBC interface. So, let's create a new feature - 'SQL Services' support. It will provide the following:

  1. Editor for SQL script with highlighting of the keywords
  2. Icon in Workspace and Repository views showing that *.sql files are recognized
  3. Activator/Publisher, which will take care of the transfer of the SQL artifacts to Sandbox/Registry
  4. Runtime dispatcher, which will provide the endpoint for access for these services
  5. Runtime executor, which will take the artifact and will do the processing
  6. Infrastructure - pom.xml, config.ini, feature.xml
  7. User interface for endpoints in Registry
  8. Sample template for SQL Service

If you are Eclipse RCP/RAP and OSGi developer, you can skip this blog and go directly by cloning the sources and looking for the Java and JavaScript plugins as example.

Let's start...

Editor for SQL

Luckily we support two web editors in Dirigible - Orion and ACE. The later has good support for SQL Language, hence we can use it directly. Be sure that you enable the support of your language in the corresponding editor by adding the file extension to the editor's 'extensions' parameter in the plugin.xml. In this case in plugin org.eclipse.dirigible.ide.editor.ace, extension point org.eclipse.ui.editors, class org.eclipse.dirigible.ide.editor.ace.AceEditor.

Icon for *.sql files

Add an icon in the resources folder of the org.eclipse.dirigible.ide.repository.ui plugin, e.g. icon-sql.png. Add a reference of the icon and the necessary file extension in org.eclipse.dirigible.ide.repository.ui.viewer.AbstractArtifactLabelProvider similar like the other cases.

Publisher adaptation

There are a few adaptation that can enable *.sql artifact to be considered as supported scripting services. To do that:

  1. Add the corresponding constant for SQL extension in ARTIFACT_EXTENSION in the class org.eclipse.dirigible.repository.api.ICommonConstants e.g. public static final String SQL = ".sql";
  2. Add SQL_CONTAINER_MAPPING and SQL_SANDBOX_MAPPING in class org.eclipse.dirigible.ide.common.CommonParameters in similar way like the others.
  3. Add the corresponding artifact extension and mappings in the static list and maps in class org.eclipse.dirigible.ide.scripts.publish.ScriptsPublisher in similar way like the others.

We are done at the IDE side! Now we go to the Runtime to implement the execution engine.

Engine for SQL

Create a new plugin which will contain all the execution engine related artifacts for the SQL support. As a template you can use already available for Java - e.g. org.eclipse.dirigible.runtime.sql

Add corresponding ENGINE_TYPE public static final String SQL = "sql"; in org.eclipse.dirigible.repository.api.ICommonConstants

Do the same for ENGINE_ALIAS


  1. .project file
  2. MANIFEST.MF file names, dependencies, exported packages
  3. In OSGi-INF folder create a sql-executor.xml with corresponding references
  4. plugin.xml fill the corresponding servlets and filters
  5. pom.xml
  6. Add the module definition in the parent's pom.xml, e.g. < module>org.eclipse.dirigible.runtime.sql< /module>

In the source folder (src), you should finally have at least:

    package org.eclipse.dirigible.runtime.filter;

    public class SQLRegistrySecureFilter extends AbstractRegistrySecureFilter {

        private static final String SQL_SECURED_MAPPING = "/services/sql-secured"; //$NON-NLS-1$

        protected String getSecuredMapping() {
            return SQL_SECURED_MAPPING;
    package org.eclipse.dirigible.runtime.registry;

    public class SQLRegistryServlet extends AbstractRegistryServiceServlet {

        private static final long serialVersionUID = -7292896045277229573L;

        protected String getServletMapping() {
            return "/sql/";

        protected String getFileExtension() {
            return ".sql";

        protected String getRequestProcessingFailedMessage() {
            return Messages.getString("JavascriptRegistryServlet.REQUEST_PROCESSING_FAILED_S");
    package org.eclipse.dirigible.runtime.sql;

    import java.sql.Connection;
    import java.sql.PreparedStatement;
    import java.sql.ResultSet;
    import java.sql.ResultSetMetaData;
    import java.util.ArrayList;
    import java.util.HashMap;
    import java.util.List;
    import java.util.Map;

    import javax.servlet.http.HttpServletRequest;
    import javax.servlet.http.HttpServletResponse;
    import javax.sql.DataSource;

    import org.eclipse.dirigible.repository.api.ICommonConstants;
    import org.eclipse.dirigible.repository.api.IRepository;
    import org.eclipse.dirigible.repository.logging.Logger;
    import org.eclipse.dirigible.runtime.repository.RepositoryFacade;
    import org.eclipse.dirigible.runtime.scripting.AbstractScriptExecutor;


    public class SQLExecutor extends AbstractScriptExecutor {

        private static final String SQL_MODULE_NAME_CANNOT_BE_NULL = "SQL module name cannot be null.";

        private static final Logger logger = Logger.getLogger(SQLExecutor.class);

        private IRepository repository;
        private String[] rootPaths;
        private Map<String, Object> defaultVariables;

        private String classpath;

        public SQLExecutor(IRepository repository, String... rootPaths) {
            this.repository = repository;
            this.rootPaths = rootPaths;
            this.defaultVariables = new HashMap<String, Object>();
            this.classpath = classpath;

        public Object executeServiceModule(HttpServletRequest request, HttpServletResponse response, Object input, String module,
                Map<Object, Object> executionContext) throws IOException {

            String result = null;
            try {
                logger.debug("entering: executeServiceModule()"); //$NON-NLS-1$
                logger.debug("module=" + module); //$NON-NLS-1$

                if (module == null) {
                    throw new IOException(SQL_MODULE_NAME_CANNOT_BE_NULL);

                String sqlSource = new String(retrieveModule(repository, module, "", rootPaths).getContent());

                DataSource dataSource = RepositoryFacade.getInstance().getDataSource();
                Connection connection = null;
                try {
                    connection = dataSource.getConnection();
                    PreparedStatement pstmt = connection.prepareStatement(sqlSource);
                    ResultSet rs = pstmt.executeQuery();

                    // get column names
                    ResultSetMetaData rsmd = rs.getMetaData();
                    int columnCnt = rsmd.getColumnCount();
                    List<String> columnNames = new ArrayList<String>();
                    for (int i = 1; i <= columnCnt; i++) {

                    JsonArray array = new JsonArray();
                    while ( {
                        JsonObject obj = new JsonObject();
                        for (int i = 1; i <= columnCnt; i++) {
                            String key = columnNames.get(i - 1);
                            String value = rs.getString(i);
                            obj.add(key, new JsonPrimitive(value != null ? value : ""));

                    result = new Gson().toJson(array);

                } finally {
                    if (connection != null) {

            } catch (Exception e) {
                logger.error(e.getMessage(), e);
                throw new IOException(e);

            return result;

        protected void registerDefaultVariable(Object scope, String name, Object value) {
            defaultVariables.put(name, value);

        protected String getModuleType(String path) {
            return ICommonConstants.ARTIFACT_TYPE.SCRIPTING_SERVICES;

Include the Plugin as a Feature

There is a feature for the runtime plugins in the project p2.runtime.feature Add the SQL plugin to the feature.xml accordingly

Include the Plugin for Packaging

You have to include just created plugin into the configuration files for Equinox OSGi:

  1. In the project releng/dirigible-all-tomcat > sub-folder src/main/webapp/WEB-INF/configuration > file config.ini
  2. In the project releng/dirigible-runtime-tomcat > sub-folder src/main/webapp/WEB-INF/configuration > file config.ini

    be very careful with the white spaces in the beginning of the line

Security Constrains in web.xml

  1. In the project releng/dirigible-all-tomcat > sub-folder src/web/ > all files web.xml excluding trial
  2. In the project releng/dirigible-runtime-tomcat > sub-folder src/web/ > all files web.xml excluding trial

Flows and Jobs Integration

Luckily we have already implemented the extensibility in a way that SQLScriptExecutorProvider from above is automatically registered and can be used in Flows.

Registry Section for SQL Services

The plugin containing the registry user interface is org.eclipse.dirigible.runtime.ui

  1. Create a file sql.html in the sub-folder resources/ui/templates/scripting/sql
    <div id="content" ng-include="'templates/default.html'"></div>
  1. Adapt $routeProvider in the app.js file by adding routing for sql pages
  2. In the same file add a corresponding section in $scope.homeData
  3. Add the controller itself in default.js defaultControllers.controller('SQLCtrl', function($scope, $resource) { $scope.restService = $resource('../scripting/sql'); });
  4. Do not forget to add some image file also
  5. Add a manu item in the main menu - menu.json

Template for SQL Scripting Service

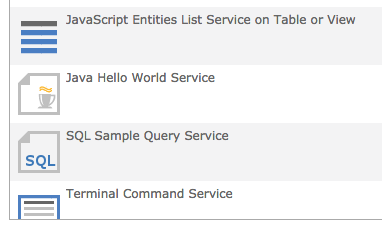

To complete the SQL support we can add at least one template to be available in the New->ScriptinService wizard. To do that, in the plugin org.eclipse.dirigible.ide.template.ui.js

  1. Create file sql-service.sql under the folder src/org/eclipse/dirigible/ide/template/ui/js/templates
  1. Add the definition in the plugin.xml accordingly
        text="SQL Sample Query Service">
  1. Do not forget the icon as well
  2. Add the default extension file recognition in org.eclipse.dirigible.ide.template.ui.js.wizard.JavascriptServiceTemplateTargetLocationPage
    } else if ("/org/eclipse/dirigible/ide/template/ui/js/templates/sql-service.sql" //$NON-NLS-1$
            .equals(model.getTemplate().getLocation())) {
        jsOrLibExt = "sql"; //$NON-NLS-1$


If you managed to follow all this - you are a hero!
